[1.15.2] Missing file texture, but it seems to be correctly linked.

Thy_Creeper_King · June 25, 2020

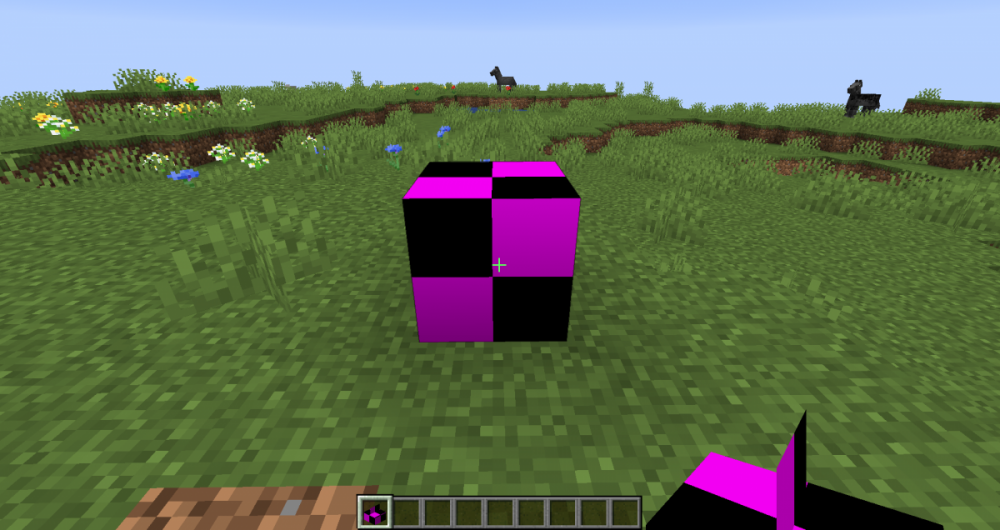

I am trying to make a stonecutter-like block with the same model, but the model and texture aren't working properly. I try out different things, and sometimes it shows the texture and model correctly in the inventory, put not when placed down. Sometimes it just doesn't show textures for either. Here are the WARNs in the runClient tab, and the model JSON file.

Quote


{
   "parent": "block/block",
   "textures": {
      "particle": "iiwam:/blocks/carpentry_table_bottom",
      "bottom": "iiwam:/blocks/carpentry_table_bottom",
      "top": "iiwam:/blocks/carpentry_table_top",
      "side": "iiwam:/blocks/carpentry_table_side",
      "saw": "iiwam:/blocks/carpentry_table_saw"
   },
   "elements": [
      {   "from": [ 0, 0, 0 ],
         "to": [ 16, 9, 16 ],
         "faces": {
            "down":  { "uv": [ 0, 0, 16, 16 ], "texture": "iiwam:/blocks/carpentry_table_bottom", "cullface": "down" },
            "up":    { "uv": [ 0, 0, 16, 16 ], "texture": "iiwam:/blocks/carpentry_table_top" },
            "north": { "uv": [ 0, 7, 16, 16 ], "texture": "iiwam:/blocks/carpentry_table_side", "cullface": "north" },
            "south": { "uv": [ 0, 7, 16, 16 ], "texture": "iiwam:/blocks/carpentry_table_side", "cullface": "south" },
            "west":  { "uv": [ 0, 7, 16, 16 ], "texture": "iiwam:/blocks/carpentry_table_side", "cullface": "west" },
            "east":  { "uv": [ 0, 7, 16, 16 ], "texture": "iiwam:/blocks/carpentry_table_side", "cullface": "east" }
         }
      },
      {   "from": [ 1, 9, 8 ],
         "to": [ 15, 16, 8 ],
         "faces": {
            "north": { "uv": [ 1, 9, 15, 16 ], "texture": "iiwam:/blocks/carpentry_table_saw", "tintindex": 0 },
            "south": { "uv": [ 1, 9, 15, 16 ], "texture": "iiwam:/blocks/carpentry_table_saw", "tintindex": 0 }
         }
      }
   ]
}

Quote

[20:26:31] [Server-Worker-2/WARN] [minecraft/ModelBakery]: Exception loading blockstate definition: 'iiwam:blockstates/carpentry_table.json' in resourcepack: 'Mod Resources' for variant: 'east': Unknown blockstate property: 'east'
[20:26:31] [Server-Worker-2/WARN] [minecraft/ModelBakery]: Exception loading blockstate definition: 'iiwam:blockstates/carpentry_table.json' in resourcepack: 'Mod Resources' for variant: 'south': Unknown blockstate property: 'south'
[20:26:31] [Server-Worker-2/WARN] [minecraft/ModelBakery]: Exception loading blockstate definition: 'iiwam:blockstates/carpentry_table.json' in resourcepack: 'Mod Resources' for variant: 'north': Unknown blockstate property: 'north'
[20:26:31] [Server-Worker-2/WARN] [minecraft/ModelBakery]: Exception loading blockstate definition: 'iiwam:blockstates/carpentry_table.json' in resourcepack: 'Mod Resources' for variant: 'west': Unknown blockstate property: 'west'
[20:26:31] [Server-Worker-2/WARN] [minecraft/ModelBakery]: Exception loading blockstate definition: 'iiwam:blockstates/carpentry_table.json' missing model for variant: 'iiwam:carpentry_table#'
[20:26:32] [Server-Worker-2/WARN] [minecraft/ModelBakery]: Unable to resolve texture reference: iiwam:/blocks/carpentry_table_bottom in iiwam:item/carpentry_table
[20:26:32] [Server-Worker-2/WARN] [minecraft/ModelBakery]: Unable to resolve texture reference: iiwam:/blocks/carpentry_table_top in iiwam:item/carpentry_table
[20:26:32] [Server-Worker-2/WARN] [minecraft/ModelBakery]: Unable to resolve texture reference: iiwam:/blocks/carpentry_table_side in iiwam:item/carpentry_table
[20:26:32] [Server-Worker-2/WARN] [minecraft/ModelBakery]: Unable to resolve texture reference: iiwam:/blocks/carpentry_table_saw in iiwam:item/carpentry_table

Draco18s · June 25, 2020

Quote

Missing file texture, but it seems to be correctly linked.

I mean, its obviously not correct if it's showing a missing texture...

38 minutes ago, Thy_Creeper_King said:

item:/blocks

remove the /

38 minutes ago, Thy_Creeper_King said:

blocks

should be "block" not "block"

https://github.com/Draco18s/ReasonableRealism/blob/1.14.4/src/main/resources/assets/harderfarming/models/block/winter_wheat_stage0.json#L4

Edited June 25, 2020 by Draco18s

Thy_Creeper_King · June 25, 2020

Thank you for your help, but it still isn't working.

Quote


{
   "parent": "block/block",
   "textures": {
      "particle": "iiwam:block/carpentry_table_bottom",
      "bottom": "iiwam:block/carpentry_table_bottom",
      "top": "iiwam:block/carpentry_table_top",
      "side": "iiwam:block/carpentry_table_side",
      "saw": "iiwam:block/carpentry_table_saw"
   },
   "elements": [
      {   "from": [ 0, 0, 0 ],
         "to": [ 16, 9, 16 ],
         "faces": {
            "down":  { "uv": [ 0, 0, 16, 16 ], "texture": "iiwam:block/carpentry_table_bottom", "cullface": "down" },
            "up":    { "uv": [ 0, 0, 16, 16 ], "texture": "iiwam:block/carpentry_table_top" },
            "north": { "uv": [ 0, 7, 16, 16 ], "texture": "iiwam:block/carpentry_table_side", "cullface": "north" },
            "south": { "uv": [ 0, 7, 16, 16 ], "texture": "iiwam:block/carpentry_table_side", "cullface": "south" },
            "west":  { "uv": [ 0, 7, 16, 16 ], "texture": "iiwam:block/carpentry_table_side", "cullface": "west" },
            "east":  { "uv": [ 0, 7, 16, 16 ], "texture": "iiwam:block/carpentry_table_side", "cullface": "east" }
         }
      },
      {   "from": [ 1, 9, 8 ],
         "to": [ 15, 16, 8 ],
         "faces": {
            "north": { "uv": [ 1, 9, 15, 16 ], "texture": "iiwam:block/carpentry_table_saw", "tintindex": 0 },
            "south": { "uv": [ 1, 9, 15, 16 ], "texture": "iiwam:block/carpentry_table_saw", "tintindex": 0 }
         }
      }
   ]
}

Quote

[21:29:54] [Server-Worker-1/WARN] [minecraft/ModelBakery]: Exception loading blockstate definition: 'iiwam:blockstates/carpentry_table.json' in resourcepack: 'Mod Resources' for variant: 'east': Unknown blockstate property: 'east'
[21:29:54] [Server-Worker-1/WARN] [minecraft/ModelBakery]: Exception loading blockstate definition: 'iiwam:blockstates/carpentry_table.json' in resourcepack: 'Mod Resources' for variant: 'south': Unknown blockstate property: 'south'
[21:29:54] [Server-Worker-1/WARN] [minecraft/ModelBakery]: Exception loading blockstate definition: 'iiwam:blockstates/carpentry_table.json' in resourcepack: 'Mod Resources' for variant: 'north': Unknown blockstate property: 'north'
[21:29:54] [Server-Worker-1/WARN] [minecraft/ModelBakery]: Exception loading blockstate definition: 'iiwam:blockstates/carpentry_table.json' in resourcepack: 'Mod Resources' for variant: 'west': Unknown blockstate property: 'west'
[21:29:54] [Server-Worker-1/WARN] [minecraft/ModelBakery]: Exception loading blockstate definition: 'iiwam:blockstates/carpentry_table.json' missing model for variant: 'iiwam:carpentry_table#'
[21:29:56] [Server-Worker-1/WARN] [minecraft/ModelBakery]: Unable to resolve texture reference: iiwam:block/carpentry_table_bottom in iiwam:item/carpentry_table
[21:29:56] [Server-Worker-1/WARN] [minecraft/ModelBakery]: Unable to resolve texture reference: iiwam:block/carpentry_table_top in iiwam:item/carpentry_table
[21:29:56] [Server-Worker-1/WARN] [minecraft/ModelBakery]: Unable to resolve texture reference: iiwam:block/carpentry_table_side in iiwam:item/carpentry_table
[21:29:56] [Server-Worker-1/WARN] [minecraft/ModelBakery]: Unable to resolve texture reference: iiwam:block/carpentry_table_saw in iiwam:item/carpentry_table
[21:30:02] [Server-Worker-5/ERROR] [minecraft/AtlasTexture]: Using missing texture, unable to load iiwam:textures/block/carpentry_table_bottom.png : java.io.FileNotFoundException: iiwam:textures/block/carpentry_table_bottom.png

Edited June 25, 2020 by Thy_Creeper_King

poopoodice · June 25, 2020

post your blockstate file

Thy_Creeper_King · June 25, 2020

{
  "variants": {
    "north": { "model": "iiwam:block/carpentry_table" },
    "south": { "model": "iiwam:block/carpentry_table", "y": 180 },
    "west": { "model": "iiwam:block/carpentry_table", "y": 270 },
    "east": { "model": "iiwam:block/carpentry_table", "y": 90 }
  }
}

poopoodice · June 25, 2020

you have to specify the type, which should be

facing=north

Edited June 25, 2020 by poopoodice

Thy_Creeper_King · June 25, 2020

still not working

Quote

[21:43:51] [Server-Worker-2/WARN] [minecraft/ModelBakery]: Exception loading blockstate definition: 'iiwam:blockstates/carpentry_table.json' in resourcepack: 'Mod Resources' for variant: 'facing=south': Unknown blockstate property: 'facing'
[21:43:51] [Server-Worker-2/WARN] [minecraft/ModelBakery]: Exception loading blockstate definition: 'iiwam:blockstates/carpentry_table.json' in resourcepack: 'Mod Resources' for variant: 'facing=east': Unknown blockstate property: 'facing'
[21:43:51] [Server-Worker-2/WARN] [minecraft/ModelBakery]: Exception loading blockstate definition: 'iiwam:blockstates/carpentry_table.json' in resourcepack: 'Mod Resources' for variant: 'facing=north': Unknown blockstate property: 'facing'
[21:43:51] [Server-Worker-2/WARN] [minecraft/ModelBakery]: Exception loading blockstate definition: 'iiwam:blockstates/carpentry_table.json' in resourcepack: 'Mod Resources' for variant: 'facing=west': Unknown blockstate property: 'facing'
[21:43:51] [Server-Worker-2/WARN] [minecraft/ModelBakery]: Exception loading blockstate definition: 'iiwam:blockstates/carpentry_table.json' missing model for variant: 'iiwam:carpentry_table#'
[21:43:52] [Server-Worker-2/WARN] [minecraft/ModelBakery]: Unable to resolve texture reference: iiwam:block/carpentry_table_bottom in iiwam:item/carpentry_table
[21:43:52] [Server-Worker-2/WARN] [minecraft/ModelBakery]: Unable to resolve texture reference: iiwam:block/carpentry_table_top in iiwam:item/carpentry_table
[21:43:52] [Server-Worker-2/WARN] [minecraft/ModelBakery]: Unable to resolve texture reference: iiwam:block/carpentry_table_side in iiwam:item/carpentry_table
[21:43:52] [Server-Worker-2/WARN] [minecraft/ModelBakery]: Unable to resolve texture reference: iiwam:block/carpentry_table_saw in iiwam:item/carpentry_table
[21:44:05] [Server-Worker-4/ERROR] [minecraft/AtlasTexture]: Using missing texture, unable to load iiwam:textures/block/carpentry_table_bottom.png : java.io.FileNotFoundException: iiwam:textures/block/carpentry_table_bottom.png

poopoodice · June 25, 2020

can you post ur block class as well?

Thy_Creeper_King · June 25, 2020

Here you go

Quote


package com.thycreeperking.iiwam.blocks;

import net.minecraft.block.Block;
import net.minecraft.block.SoundType;
import net.minecraft.block.material.Material;
import net.minecraftforge.common.ToolType;

public class CarpentryTableBlock extends Block {

    public CarpentryTableBlock() {
        super(Block.Properties.create(Material.WOOD)
                .hardnessAndResistance(2.5f, 2.5f)
                .sound(SoundType.WOOD)
                .harvestLevel(0)
                .harvestTool(ToolType.AXE));
    }
}

poopoodice · June 25, 2020

Ok, so if you want your block to have facing property, you will need to create one. if not just use

        "": {
            "model": "...."
        }

Edited June 25, 2020 by poopoodice

Thy_Creeper_King · June 25, 2020

how do I create a facing property?

poopoodice · June 25, 2020

extend your block class to HorizontalBlock if it is what you need (which looks right to you), otherwise see how other vanilla blocks does it.

Edited June 25, 2020 by poopoodice

Thy_Creeper_King · June 25, 2020

still missing textures 😥

poopoodice · June 25, 2020

what have you changed?

Thy_Creeper_King · June 25, 2020

package com.thycreeperking.iiwam.blocks;

import net.minecraft.block.Block;
import net.minecraft.block.HorizontalBlock;
import net.minecraft.block.SoundType;
import net.minecraft.block.material.Material;
import net.minecraftforge.common.ToolType;

public class CarpentryTableBlock extends HorizontalBlock {

    public CarpentryTableBlock() {
        super(Properties.create(Material.WOOD)
                .hardnessAndResistance(2.5f, 2.5f)
                .sound(SoundType.WOOD)
                .harvestLevel(0)
                .harvestTool(ToolType.AXE));
    }
}

poopoodice · June 25, 2020

that's not enough, you need to actually implement the blockstate

you can declare what the default state is by putting this in ur constructor.

        setDefaultState(getDefaultState()
                .with(HORIZONTAL_FACING, Direction.NORTH)

and override this so it knows that you have the facing as one of your blockstate

    @Override
    protected void fillStateContainer(StateContainer.Builder<Block, BlockState> builder)
    {
        builder.add(HORIZONTAL_FACING);
    }

and by overriding this

    @Override
    public BlockState getStateForPlacement(BlockItemUseContext context)
    {
        return this.getDefaultState()
                .with(HORIZONTAL_FACING, context.getPlacementHorizontalFacing());
    }

when placed this gets called, and return the state that has the facing corresponds to the player's horizontal facing.

Thy_Creeper_King · June 25, 2020

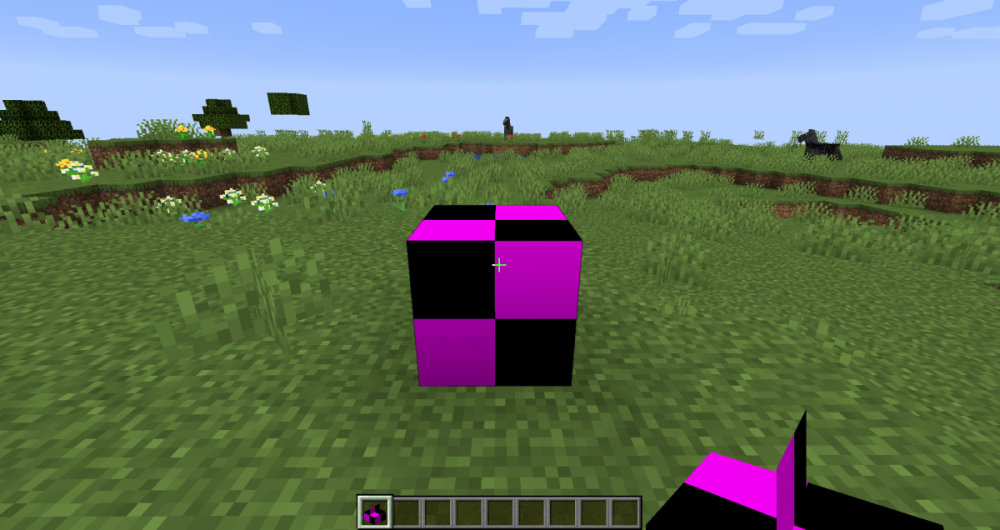

Ok so the model is good now, but the texture is still missing.

Quote


package com.thycreeperking.iiwam.blocks;

import net.minecraft.block.Block;
import net.minecraft.block.BlockState;
import net.minecraft.block.HorizontalBlock;
import net.minecraft.block.SoundType;
import net.minecraft.block.material.Material;
import net.minecraft.item.BlockItemUseContext;
import net.minecraft.state.StateContainer;
import net.minecraft.util.Direction;
import net.minecraftforge.common.ToolType;

public class CarpentryTableBlock extends HorizontalBlock {

    public CarpentryTableBlock() {
        super(Properties.create(Material.WOOD)
                .hardnessAndResistance(2.5f, 2.5f)
                .sound(SoundType.WOOD)
                .harvestLevel(0)
                .harvestTool(ToolType.AXE));
        setDefaultState(getDefaultState()
                .with(HORIZONTAL_FACING, Direction.NORTH));
    }
    @Override
    protected void fillStateContainer(StateContainer.Builder<Block, BlockState> builder)
    {
        builder.add(HORIZONTAL_FACING);
    }
    @Override
    public BlockState getStateForPlacement(BlockItemUseContext context)
    {
        return this.getDefaultState()
                .with(HORIZONTAL_FACING, context.getPlacementHorizontalFacing());
    }
}

Edited June 25, 2020 by Thy_Creeper_King

poopoodice · June 25, 2020

try remove parent key in ur block model

Thy_Creeper_King · June 25, 2020

now the block item model is broken.

(sorry I can't upload an image)

Draco18s · June 25, 2020

4 hours ago, poopoodice said:

try remove parent key in ur block model

No.

8 hours ago, Thy_Creeper_King said:

[21:44:05] [Server-Worker-4/ERROR] [minecraft/AtlasTexture]: Using missing texture, unable to load iiwam:textures/block/carpentry_table_bottom.png : java.io.FileNotFoundException: iiwam:textures/block/carpentry_table_bottom.png

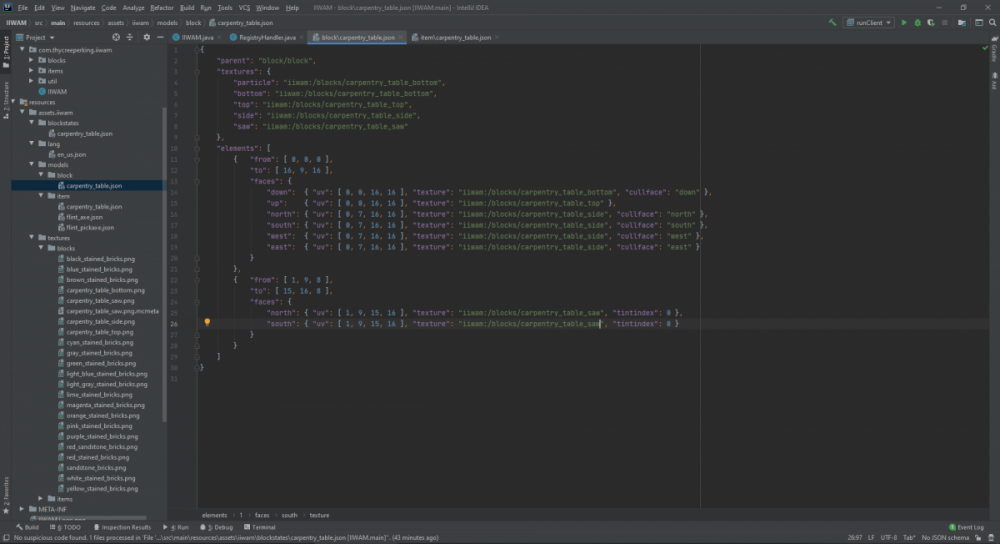

Show your file paths in Windows Explorer

Thy_Creeper_King · June 25, 2020

Draco18s · June 25, 2020

You need to change your folder name from "blocks" to "block" as well.

Thy_Creeper_King · June 25, 2020

someone else told me to change it to blocks lol

Edited June 25, 2020 by Thy_Creeper_King

Thy_Creeper_King · June 25, 2020

ok changed the names

Draco18s · June 25, 2020

Screenshots of purple are useless to helping solve the problem, we need the log files.

24 minutes ago, Thy_Creeper_King said:

someone else told me to change it to blocks lol

No, I told you to change it away from blocks. No one else has even mentioned it.

That said:

5 hours ago, Draco18s said:

iiwam:textures/block/carpentry_table_bottom.png

You do not have this file.

Edited June 25, 2020 by Draco18s
